Modle E3
Modle E3
- ability:Maximum speed 2400 pcs/hour
- Cardboard type:Corrugated cardboard/PP sheet
- Box type:: Plaform, Citrus,P84,Open Column
- Box size:Minimum 300x200x58mm to maximum 600x400x250mm
- delivery time:±45 days (depending on production schedule)
CYCLE DESCRIPTION
The blank is picked from the loader by 4 vacuum cups installed on an arm, mechanically synchronized by the main chain. The blank is driven by the main chain to the forming section. During forward movement the glue is applied. The blank is folded around a mould. Top flaps are folded and glued by a pneumatic folding/pressing device.
MAIN FEATURES OF THE MACHINE

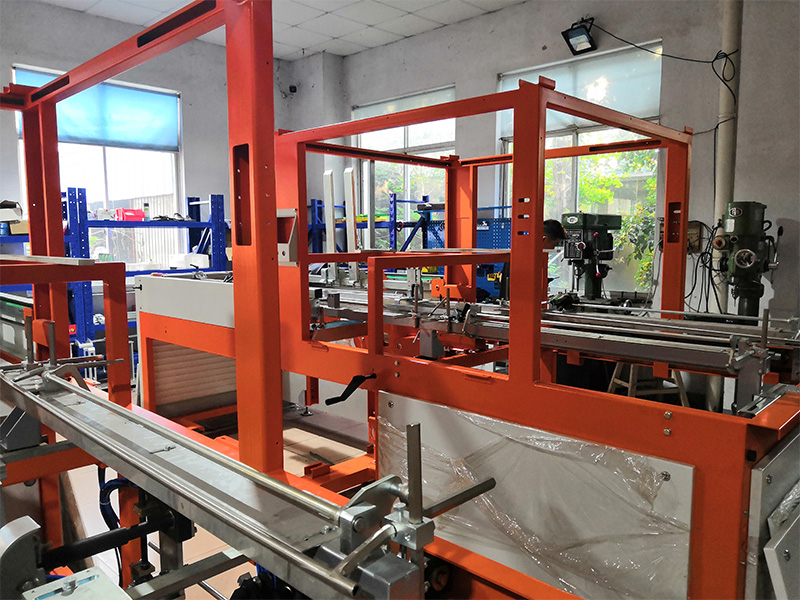

Welded and painted steel frame.
Horizontal loader to help blank positioning.
Blank picking by vacuum cups controlled by Venturi system (one Venturi system for each vacuum cup).
Blank pushing chain controlled by inverter.
Forming head controlled by inverter.
Fast change over by means of hand wheels equipped with direct drive indicators.
Citrus folding system controlled by pneumatic pistons and with possibility of setting both height and width.

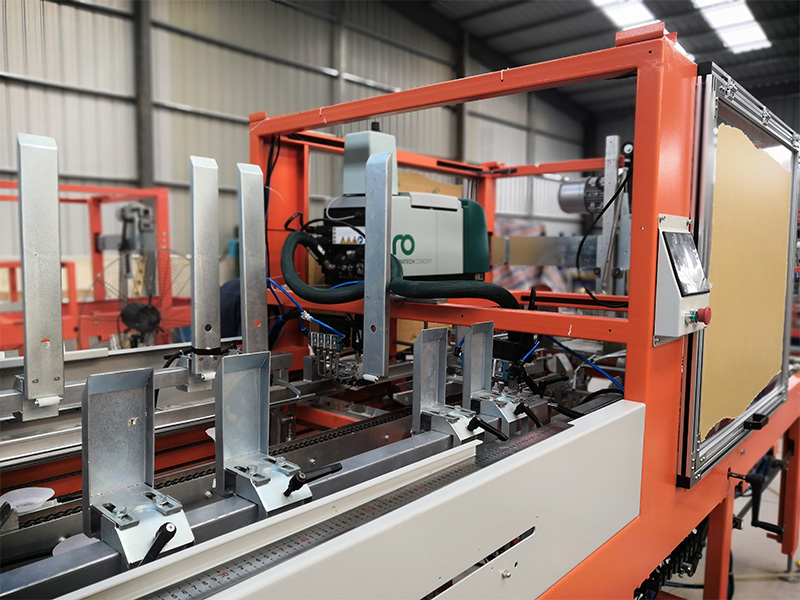

Glue applicator: SMI OEM Standard Gluing machine (ROBATECH or Nordson or Valco Melton，options） equipped by 2 guns（3/4 guns optional）.
Transparent safety doors with aluminium frame, controlled by safety micro switches.
User friendly interface with touch screen that helps the operator in reading and programming machine parameters. Available size parameters, machine status and errors list. Capacity of storage of 100 different programs.
Painting : frame RAL 2004 ; panels RAL 7035.
TECHNICAL DATA
Max Speed: 2400 Trays/hour.
Production running speed depends on box shapes, board dimensions and quality.
Electrical supply: 400 V – 50Hz 3 phases + N + G
Control voltage: 24 VDC
Working temperature: from 5°C to 35°C.
Installed power: 5.65KW
Air consumption: 11 Nl / cycles.
Weight: 1280 KG.
